Model | Max Auger Bit Diameter | Min Hydraulic Flow | Max Hydraulic Flow | |
PA15B Planetary Drive Auger | Max Auger Bit Diameter 24 in. (610 mm) | Min Hydraulic Flow 6 gpm (23 L/min.) | Max Hydraulic Flow 17 gpm (64 L/min.) | |
---|---|---|---|---|
PA30B Planetary Drive Auger | Max Auger Bit Diameter 36 in. (914 mm) | Min Hydraulic Flow 14 gpm (53 L/min.) | Max Hydraulic Flow 30 gpm (114 L/min.) | |
PA40 Planetary Drive Auger | Max Auger Bit Diameter 36 in. (914 mm) | Min Hydraulic Flow 28 gpm (106 L/min.) | Max Hydraulic Flow 42 gpm (159 L/min.) |
Model | Boom Size | Hydraulic Oil Flow | Overall Length | Weight | |

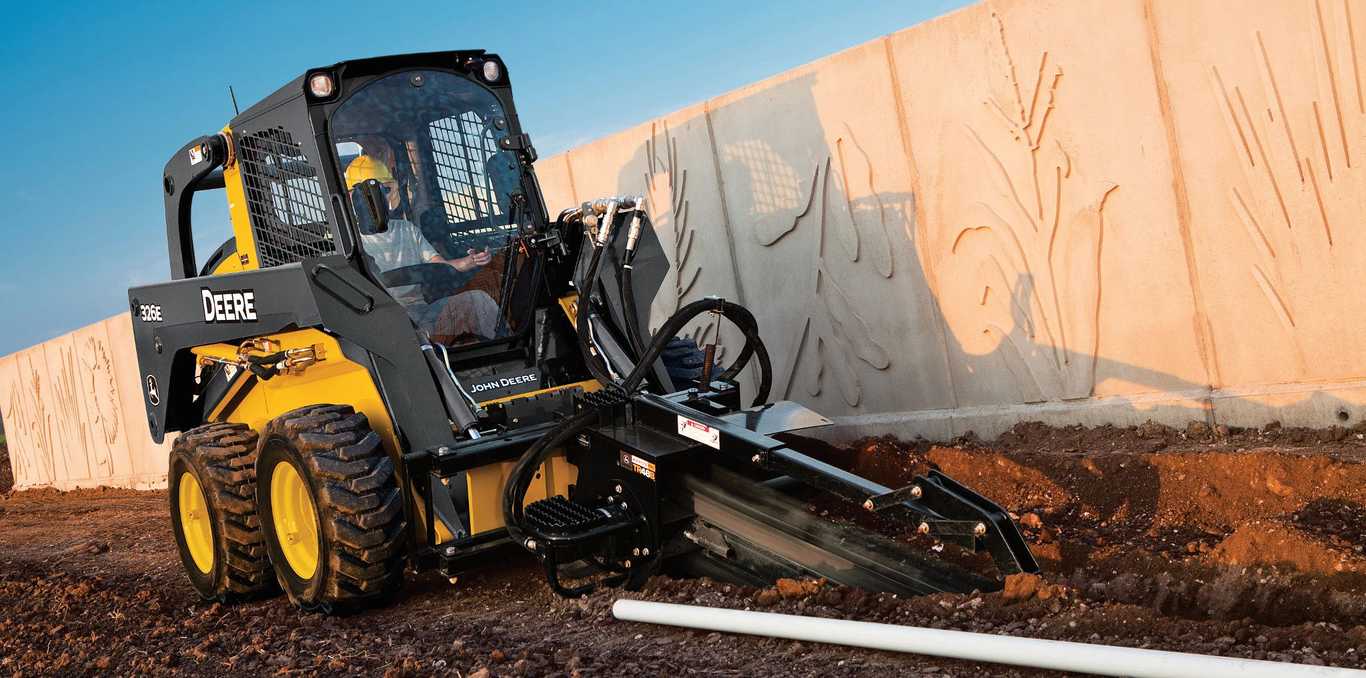

TC36 Trencher | Boom Size 915 mm (36 in.) | Hydraulic Oil Flow 53–83 L/min. (14–22 gpm) | Overall Length 1855 mm (73 in.) | Weight 510 kg (1,130 lb.) | |
---|---|---|---|---|---|
TC48 Trencher | Boom Size 1220 mm (48 in.) | Hydraulic Oil Flow 53–83 L/min. (14–22 gpm) | Overall Length 2185 mm (86 in.) | Weight 540 kg (1,180 lb.) | |
TR36B Trencher | Boom Size 915 mm (36 in.) | Hydraulic Oil Flow 61-167 L/min. (16-44 gpm) | Overall Length 1855 mm (73 in.) | Weight 510 kg (1,130 lb.) | |
TR48B Trencher | Boom Size 1220 mm (48 in.) | Hydraulic Oil Flow 61-167 L/min. (16-44 gpm) | Overall Length 2185 mm (86 in.) | Weight 540 kg (1,180 lb.) | |
TR60B Trencher | Boom Size 1525 mm (60 in.) | Hydraulic Oil Flow 102-167 L/min. (27-44 gpm) | Overall Length 2390 mm (94 in.) | Weight 610 kg (1,335 lb.) |
