Forks & Spears
Bale Spears
| Model | Weight | NUMBER OF MAIN TINES | TINE CAPACITY | |
| AB21 Bale Spears | Weight 66 kg (145 lb.) | NUMBER OF MAIN TINES 1 main tine | TINE CAPACITY 907 kg (2,000 lb.) | |
|---|---|---|---|---|
| AB31 Bale Spears | Weight 91 kg (200 lb.) | NUMBER OF MAIN TINES 1 main tine | TINE CAPACITY 1361 kg (3,000 lb.) | |
| AB32 Bale Spears | Weight 70 kg (155 lb.) | NUMBER OF MAIN TINES 2 main tines | TINE CAPACITY 1361 kg (3,000 lb.) | |
| AB42 Bale Spears | Weight 109 kg (240 lb.) | NUMBER OF MAIN TINES 2 main tines | TINE CAPACITY 1814 kg (4,000 lb.) | |
| AB43 Bale Spears | Weight 102 kg (225 lb.) | NUMBER OF MAIN TINES 3 main tines | TINE CAPACITY 1814 kg (4,000 lb.) | |
| Square | Weight 171 kg (375 lb.) | NUMBER OF MAIN TINES -- | TINE CAPACITY -- |
Nursery Forks
| Model | Width | Maximum Root Ball | Fork Opening (Parallel) | |
| NF44 Nursery Fork | Width 1194 mm (47 in.) | Maximum Root Ball 1118 mm (44 in.) | Fork Opening (Parallel) 457 mm (18 in.) |
|---|

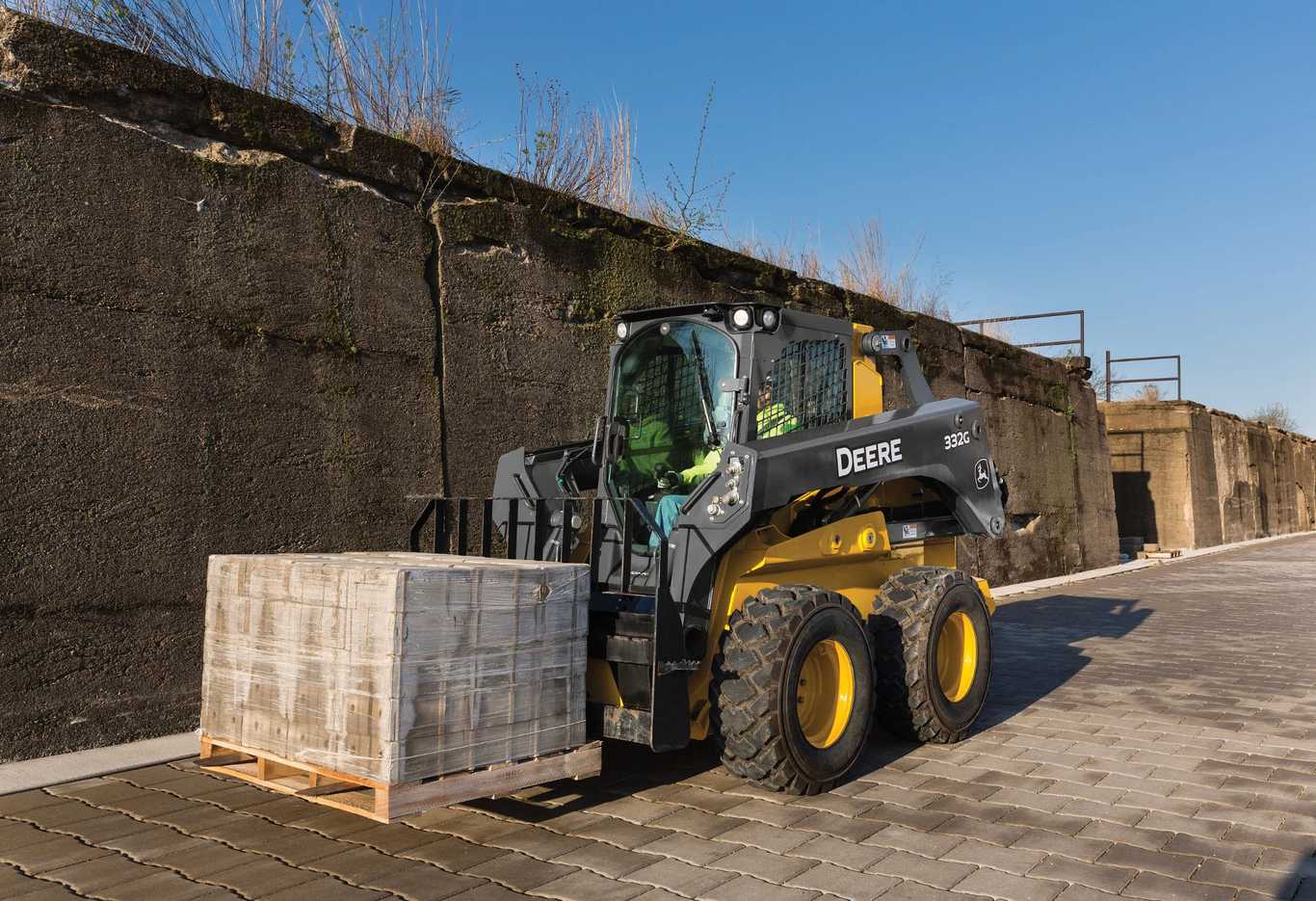

Pallet Forks
| Model | Frame Width | Fork Thickness | Fork Tine Load Rating at 600-mm (24 in.) Load Center | |
| Heavy Duty P45 | Frame Width 1410 mm (55 in.) | Fork Thickness 36 mm (1.4 in.) | Fork Tine Load Rating at 600-mm (24 in.) Load Center 1814 kg (4,000 lb.) | |
|---|---|---|---|---|
| Heavy Duty P60 | Frame Width 1770 mm (70 in.) | Fork Thickness 45 mm (1.8 in.) | Fork Tine Load Rating at 600-mm (24 in.) Load Center 2820 kg (6,200 lb.) | |
| Severe Duty for CWLs | Frame Width 1520 mm (60 in.) | Fork Thickness 50 mm (2 in.) | Fork Tine Load Rating at 600-mm (24 in.) Load Center 4490 kg (9,900 lb.) | |
| Severe Duty PF45 | Frame Width 1380 mm (54 in.) | Fork Thickness 50 mm (2 in.) | Fork Tine Load Rating at 600-mm (24 in.) Load Center 4490 kg (9,900 lb.) | |
| Severe Duty PF60 | Frame Width 1730 mm (68 in.) | Fork Thickness 50 mm (2 in.) | Fork Tine Load Rating at 600-mm (24 in.) Load Center 4490 kg (9,900 lb.) |
