The ComfortGlide seat suspension from John Deere is a system for zero-turn mowers that allows fore
and aft movement in the seat when driving over uneven terrain. It allows front to rear movement of
1-in. to be absorbed, allowing the seat to move with you, not against you. The suspension reduces
horizontal vibrations and jarring, making a huge improvement to comfort.

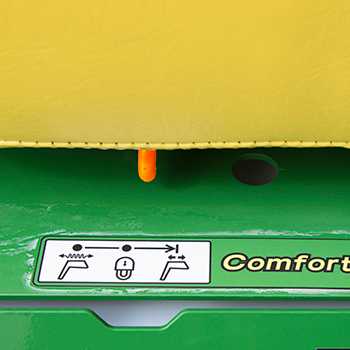

Adjustment lever for the ComfortGlide Suspension Seat
The ComfortGlide suspension includes two adjustable springs and a lever for adjusting the seat
position. The springs under the seat can be moved closer to the front for heavier operators or back
for lighter operators. The lever position can be adjusted while sitting and can be used to:
Slide the seat forward and backward, allowing more legroom
Engage and allow fore/aft movement
Disengage and lock the seat in position

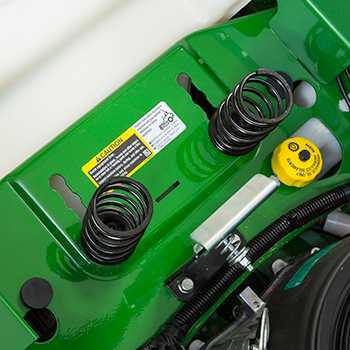

Adjustable springs for the ComfortGlide Suspension
When the seat is down, a spring-loaded latch will lock it in place for security. The seat can easily
be raised back up to access the adjustable seat springs.

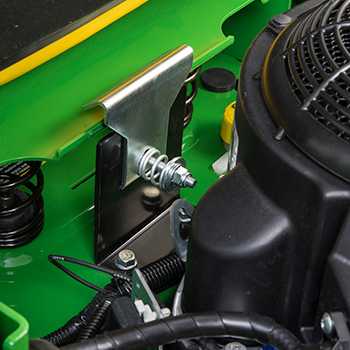

Spring-loaded latch for locking the ComfortGlide Suspension Seat in place
Compatibility
The ComfortGlide Suspension is available on every
Z900 seat option, including the new Z994R and Z997R
Diesel models. ComfortGlide also comes standard on
Z700 M and R models.
