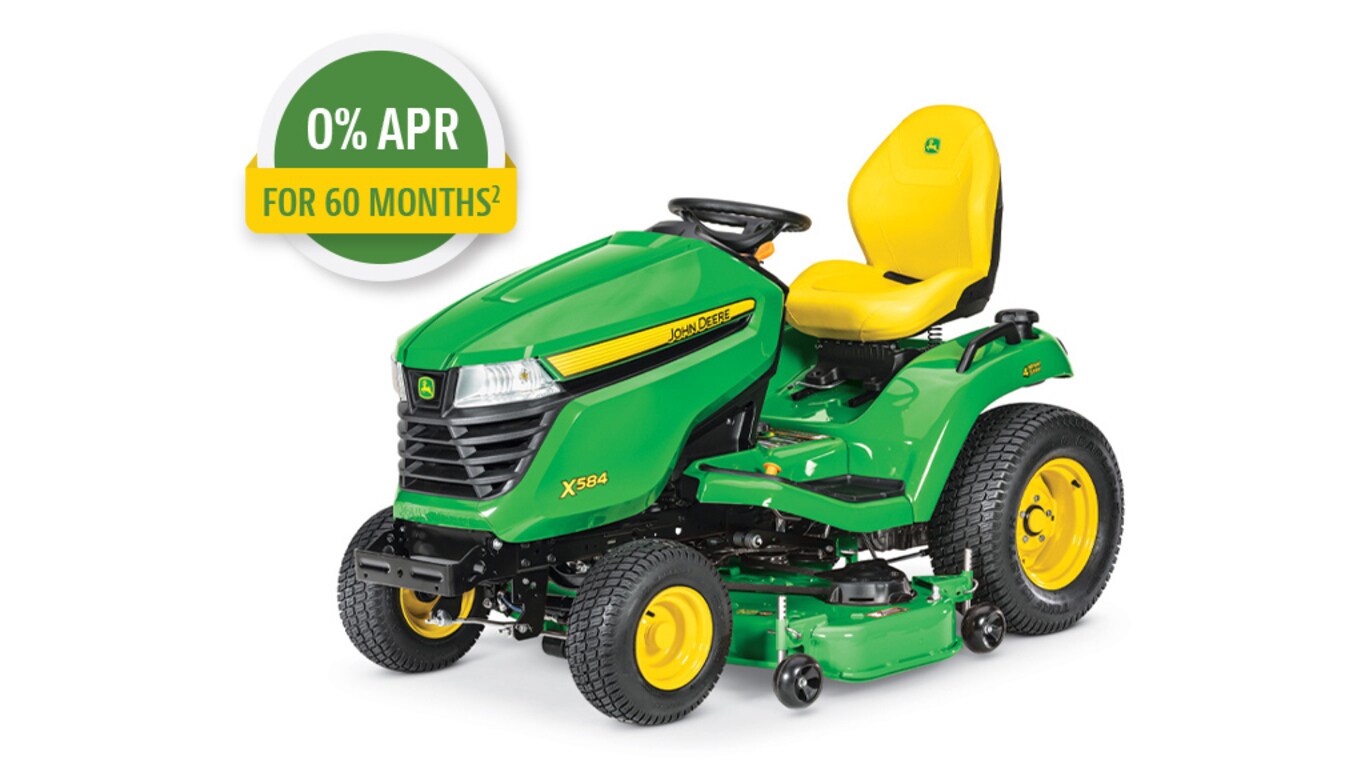

X584 4WS, 54-in. Deck

Smooth-running V-twin engine

The tractor is powered by a John Deere iTorque power system, a combination of engine features and an exclusive hood design providing superior lugging ability, even cooling, and durability. Key engine features include:

• 24 hp (17.9 kW)
• Large 44.3-cu in. (726-cc) displacement
• V-twin air-cooled design
  • Excellent power and performance
  • Smooth, quiet power
  • Easy starts
• Quality features include:
  • Cast-iron cylinder liners
  • Overhead valves
  • Full-pressure lubrication
  • Replaceable oil filter
  • Dual-stage air cleaner

Flywheel alternator

A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer:

• 15-amp charging capacity
• Regulated to keep the battery at a full charge, without risk of overcharging

Fuel tank has a large, 4.4-U.S. gal. (16.6-L) capacity

Fuel tank

Quality fuel system components enhance performance and convenience:

• Large, 4.4-U.S. gal. (16.6-L) capacity
• Wide, 3-in. (7.6-cm) diameter fuel tank filler opening
  • Located on the left fender
  • Makes adding fuel easy and helps eliminate spillage
• Sealed and tethered fuel cap
  • Reduced fuel vapor loss
  • Less chance of losing fuel cap

Convenient dash-mounted fuel gauge

• Automotive-style fuel gauge on the dash
  • Easy to read from tractor seat
  • Reduces likelihood of running out of fuel
  • Eliminates unnecessary stops to refill

X584 with Accel Deep 48A Mower Deck

The 48-in. (122-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

• 4.83-in. (12.3-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
  • Optional lever-action or electric one-touch MulchControl™ system provides superior mulching performance and versatility.
• Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
• Mower deck is suspended from the vehicle for a smooth and level cut
  • Adjustable mower wheels, positioned just above ground level, help reduce scalping
• 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
• Compatible with high-performance Power Flow™ material collection systems
• For use on X330, X350, X354, X370, X380, X384, X390, X394, X570, X580, X584, and model year 2016 and newer X590 Tractors

Excellent cut quality

48A Mower Deck underside (similar mower from ZTrak™ Z300 shown)

Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

• Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
  • Helps maintain excellent cut quality at faster mowing speeds
• Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
• Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
• Exact Adjust deck-leveling system allows for easy and accurate leveling of the mower deck.

Productivity - getting the job done fast

Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

• Greatly improves mower's capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

• Gives a smooth, even discharge of clippings at all mowing speeds
• Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
• The 48A Power Flow blower has an inlet housing with over 50 percent greater area than the 48X Power Flow blower used on previous machines.

Cleanliness - for the mower and the operator

Left side of Accel Deep 48A Mower Deck

The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:

• There are few places to catch and hold material on top and underneath the deck.
  • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
  • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
  • Less need to clean and remove buildup of material from underside deck
• The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck:
  • Limited amount of material to drift onto the operator and mower deck
  • Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
  • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

• The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy.

• Hose connector is included with the mower deck.

Mower blades

Side-discharge blades can be used with the Power Flow system when bagging.

Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging.

Mower blade use chart

Superior durability is designed in

Spindle pocket with flip-up cover

Easy-to-adjust mower wheel and mower side reinforcement

The 48A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

• Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
• Ribs in the deck shell add strength where it is needed
• The 48A has a 23 percent heavier overall weight than the Edge™ Xtra 48-in. (122-cm) Mower Deck used on previous machines.

Mower wheels are heavy duty:

• Provides greater strength and durability for longer, trouble-free life.
• Setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.

The 48A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Versatility - easy to change between side discharge, mulch, and bagging modes

The 48A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

• With an optional MulchControl system installed (along with the special mulching blades), changing from side discharging to mulching or vice versa is done with the simple flip of a lever or push of an electric switch.
• The Power Flow rear bagger can be used with MulchControl by simply using the MulchControl lever or electric one-touch switch to move the mulch baffle to the side-discharge position.

7-bu (247-L) Power Flow rear bagger

Optional 7-bu (247-L) rear bagger

Power Flow blower

An optional 7-bu (247-L) rear bagger material collection system (MCS) is available. It provides an efficient means of collecting grass clippings and leaves:

• The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup.
• The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:

  • 7-bu (247-L) capacity
  • Easy-to-attach Power Flow blower (ordered separately)
  • Easy-to-attach chute (ordered separately)
  • Air exhaust duct
  • Convenient spring-latch
  • Airflow fill indicator
  • Quik-Tatch mounting
  • Sealed hopper top
  • Loose-knit bags available

Larger 14-bu (493-L) and 19-bu (670-L) MCS are available, in addition to the 7-bu (247-L) MCS, for specific X300 and X500 Series Tractor models.

X590 with Accel Deep 54A Mower Deck

The 54-in. (137-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

• 4.83-in. (12.3-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
  • Optional lever-action or electric one-touch MulchControl™ system provides superior mulching performance and versatility.
• Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
• Mower deck is suspended from the vehicle for a smooth and level cut
  • Adjustable mower wheels, positioned just above ground level, help reduce scalping
• 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
• Compatible with high-performance Power Flow™ material collection systems
• For use on X380, X384, X390, X394, X570, X580, X584, and model year 2016 and newer X590 Tractors

Excellent cut quality

54A Mower Deck underside (similar mower from ZTrak™ Z300 shown)

Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

• Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
  • Helps maintain excellent cut quality at faster mowing speeds
• Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
• Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
• Exact Adjust deck-leveling system allows for easy and accurate leveling of the mower deck

Productivity - getting the job done fast

Left side of Accel Deep 54A Mower Deck

Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

• Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

• Gives a smooth, even discharge of clippings at all mowing speeds
• Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
• The 54A Power Flow blower has an inlet housing with over 20 percent greater area than the 54X Power Flow blower used on previous machines.

Cleanliness - for the mower and the operator

Accel Deep 54A Mower Deck

The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:

• There are few places to catch and hold material on top and underneath the deck.
  • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
  • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
  • Less need to clean and remove buildup of material from underside deck
• The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck:
  • Limited amount of material to drift onto the operator and mower deck
  • Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
  • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

• The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

Mower wash port

Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy.

• Hose connector is included with the mower deck.

Superior durability is designed in

Spindle pocket with flip-up cover

Easy-to-adjust mower wheel and mower side reinforcement

The 54A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

• Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
• Ribs in the deck shell add strength where it is needed.
• The 54A has a 3 percent heavier overall weight than the Edge™ Xtra 54-in. (137-cm) Mower Deck used on previous machines.

Mower wheels are heavy duty:

• Provides greater strength and durability for longer, trouble-free life.
• Setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.

The 54A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Versatility - easy to change between side discharge, mulch, and bagging modes

The 54A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

• With an optional MulchControl system installed (along with the special mulching blades), changing from mulch mode to side discharge mode or vice versa is done with the simple flip of a lever or touch of an electric switch.
• The Power Flow rear bagger can be used with MulchControl by simply using the MulchControl lever or electric one-touch switch to move the MulchControl baffle to the side-discharge position.

7-bu (247-L) Power Flow rear bagger

Optional 7-bu (247-L) rear bagger

Power Flow blower

An optional 7-bu (247-L) rear bagger material collection system (MCS) is available. It provides an efficient means of collecting grass clippings and leaves:

• The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup.
• The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:

  • 7-bu (247-L) capacity
  • Easy-to-attach Power Flow blower (ordered separately)
  • Easy-to-attach chute (ordered separately)
  • Air exhaust duct
  • Convenient spring-latch
  • Airflow fill indicator
  • Quik-Tatch mounting
  • Sealed hopper top
  • Loose-knit bags available

Larger 14-bu (493-L) and 19-bu (670-L) MCS are available, in addition to the 7-bu (247-L) MCS, for specific X300 and X500 Series Tractor models.

Mower blades

Side-discharge blades can be used with the Power Flow system when bagging.

Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging.

Mower blade use chart

An exclusive 4-year or 500-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X500 Series Tractors.

• The warranty is hassle free, with one company handling all the paperwork.
• Premium features of X500 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Four-wheel steering

Uncut circle with two- and four-wheel steering (shown on similar X390 and X394 Tractors)

Four-wheel steer trimming

NOTE: In the schematic above, the solid line shows the uncut circle of four-wheel steer tractor, and the dashed line shows a two-wheel steer tractor. When a four-wheel steer tractor is trimming, all four wheels track around the center of the uncut circle.

Four-wheel steering provides very significant maneuverability and trimming advantages over two-wheel-steering equipped tractors.

A smaller uncut area reduces, or even eliminates, the need to back up and reposition the tractor when trimming around trees and shrubs. An X584 Tractor with a 54-in. (137-cm) Accel Deep Mower Deck has a 12-in. (30-cm) uncut circle radius, compared to 24-in. (61-cm) on the similar two-wheel steer X580 model.

Since all four wheels track around the object, the inside rear wheel doesn’t interfere with the object. For example, the rear wheel won’t drive into a flower bed.

The outside turning circle is reduced, making it possible to maneuver in small spaces.

Hydraulic power steering

Power four-wheel steering

Hydraulic power steering is standard equipment to maximize the benefits of four-wheel steering with both tight turns and easy steering:

• Provides effortless automotive-like control
• Reduces operator fatigue and increases productivity
• Offers a tight turning radius for optimum maneuverability
• Very easy and efficient trimming around objects

Designed for tight turns

The four-wheel steering system is designed for tight turns, leading to greater mowing efficiency:

• Caster, camber, and kingpin angles are optimized to reduce effort, especially when going from straight ahead to a turn.
• Steering geometry has been designed with the use of 3D modeling, so all four tires are working together.
• Sealed ball bearings are used at the rear steering spindles to reduce friction.
• Small scrub radius, less than 1 in. (2.54 cm) in the rear, reduces scuffing and bump-steer.

Hydrostatic transaxle

Piston-type rotating groups

The integrated hydrostatic transaxle (IHT) encloses the hydrostatic pump and motor rotating groups in the same housing with the differential and axle housing:

• Very efficient piston-type design
• Fewer sealing surfaces to minimize potential for leakage

When combined with the foot controls, the hydrostatic transmission functions similarly to that of an automatic transmission in an automobile, so the term automatic is often used to describe it.

Key features of the drive system are as follows:

• Large pump and motor rotating groups for long life and efficient operation
• Full-length axle housings to support heavy loads
• Twin Touch™ foot control for easy and precise change of speed and direction
• Internal wet-disk brakes for long life and consistent operation
• Brake interlock system that returns the foot control pedals to neutral during panic stops
• Replaceable oil filter for extra protection for tractors equipped with hydraulic lift and steering

Replaceable filter (X580, X584, X590)

Freewheeling valve

Freewheeling valve

When it's inconvenient to start the tractor, a freewheeling valve releases the transmission so the tractor can be pushed a short distance. The freewheeling valve control is conveniently located on the tractor’s rear hitch plate.

Traction assist (differential lock)

Traction assist control

Traction assist is standard equipment:

• Traction assist supplies positive power to both drive wheels for increased traction.
• Foot-operated traction assist control is convenient for the operator to use, when needed.

Lever-action MulchControl lever (shown on 48A mower deck)

Electric one-touch MulchControl switch

The optional MulchControl system makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

• Creates a beautiful looking lawn
• Smaller grass clippings disappear into the lawn canopy
• Reduces fertilizer needs
• Grass clippings are not blown onto the operator, driveways, or flower beds
• No need to dispose of bags of clippings

How MulchControl works

MulchControl baffle open (shown on Z300 48A mower deck)

MulchControl baffle closed (shown on Z300 48A mower deck)

MulchControl is an innovative, simple design that is easy to use and maintain:

• The MulchControl system includes an adjustable MulchControl baffle near the discharge chute and fixed baffles to control the flow of material under the deck.
• The MulchControl handle, or an electric one-touch actuator, is on top of the mower deck and is used to open and close the MulchControl baffle.
• When the MulchControl baffle is open, most of the material flows freely out the discharge deflector or into a material collection system.
• When the MulchControl baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.

MulchControl is well-suited to the following mowing situations:

• For operators who usually mulch, but side discharge when grass gets too long
• For operators who usually side discharge, but would like to close the chute to control clippings in some areas
• For operators who always mulch a main lawn, but often side discharge secondary lawns
• For operators who collect clippings but want to go farther before emptying the material collection system

MulchControl puts the operator in control of the clippings.

Electric one-touch MulchControl

Electric one-touch MulchControl systems shift the MulchControl baffle using an electric actuator that is operated by a dash-mounted switch.

Electric one-touch MulchControl switcht

Electric one-touch MulchControl actuator (shown on 54A mower deck)

Operators can convert between modes without interrupting the mowing process, making it possible to change between modes:

• When approaching driveways or flower beds where clippings would be undesirable
• When a breeze blows clippings back onto the operator
• For side discharge mowing only the areas of the property where grass is too thick for mulching
• With 48A and 54A Mower Decks, for collecting only the areas of the property where grass is too tall or thick for mulching

MulchControl limitations

While in the side discharge mode, MulchControl still mulches about one third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

• When cutting strong southern grasses, such as Zoysia and Bermuda
• When cutting in wet, high growth conditions, such as those found in the Pacific Northwest United States
• When optimum bagging and lawn clean­up is desired
• 42A Mower Deck requires a MulchControl baffle be removed to install the bagger chute

When bagging with MulchControl on a 48A or 54A mower deck, the MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower runs without material when the baffle is closed.

Electric one-touch MulchControl attachments

*NOTE: Model year 2016-2017 X300 and X500 Series Tractors (X300 serial number 10,001-50,000 and X500 serial number 110,001-130,000) require replacing the tractor wiring harness and dash panel to use an electric MulchControl attachment.

Rear baffle (A) must be removed for bagging with MulchControl with 42A mower decks

When bagging with MulchControl on a 42A mower deck, the cut-and-throw rear bagger can be used with the MulchControl blades. However, the rear MulchControl baffle (A) needs to be removed to install the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.

MulchControl compatibility

Each MulchControl system is an optional field-installed attachment and includes everything needed: baffles, mulch blades, a handle (lever action attachments) or an actuator, wiring, and switches (electric one-touch attachments).

Lever-action MulchControl attachments

48-in. (122-cm) Front Blade, angling and tire chains on an X590 Tractor

47-in. (119-cm) Snow Blower and tire chains on an X590 Tractor

An advantage of lawn tractors is their ability to use attachments for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

• 44-in. (112-cm) Snow Blower for X570 Tractor
• 47-in. (119-cm) Snow Blower for X580, X584, and X590 Tractors
• 48-in. (122-cm) Front Blade
• Tire chains or TerraGrip traction belts
• Weather enclosure
• Weights

Controls and gauges (steering wheel removed)

Dash (X590 Tractor shown with switch on to show display)

Controls

The contoured dash has clean, attractive styling and ergonomic controls for easy use:

• Controls are color-coded for easy identification by the operator.
• Controls are logically placed and easy to reach.
• The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
• The reverse implement option (RIO) switch is a yellow button.
• The latch control on foot-lift models and hydraulic-lift control on power-lift models and the park brake latch are pivot levers for low effort.
• Cruise control activation is handled by an automotive-style button.
• Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
  • The choke lever is spring loaded to eliminate the chance that the tractor will be unintentionally operated with the choke partially closed.
• Functional design of the throttle and choke controls provides good appearance and a comfortable feel.

Display panel

Display panel

Display panel illustration with descriptions

Instrument display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:

• Display features dark-cockpit design to minimize operator distractions.
• Display is back lit for night visibility.
  • Night visibility is especially useful with snow blower use.
• Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
• Electronic fuel gauge provides real-time fuel level information.
• A tachometer graphically displays engine speed.
  • Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
• An indicator tells the operator when the PTO is operating.
• Bright caution and stop lights capture the operator's attention when important information is on the instrument cluster.
  • Damage can be prevented and repair costs can be reduced by addressing problems early.
• Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
  • The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
• Operators are advised if battery voltage is low, normal, or excessive.
• The service indicator light illuminates to indicate a diagnostic error code is stored.
  • On-board diagnostics provides trouble codes for use by trained technicians.
    • For example, a technician can test switch functionality and circuit continuity without tools.

Twin Touch™ foot control

Twin Touch foot control

Cruise control

Twin Touch foot pedals control the speed and direction of travel:

• Automotive-type accelerator control ensures easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

Cruise control

Cruise control is standard equipment:

• To engage, push the cruise-control button and hold until the foot is removed from the forward pedal.
• For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.

Mower deck height adjustment

Cut height adjusting knob

A rotary dial knob makes adjusting the mower cut height quick and easy:

• Mower cut height can be adjusted in 0.25-in. (6.4-mm) increments from 1 in. (2.5 cm) to 4 in. (10.2 cm).

• Mower deck returns to the same preset height each time it is lowered.

• Included deck-leveling gauge and Exact Adjust tool are used in conjunction with Exact Adjust ports for easy and accurate leveling of the mower deck for optimum mowing performance.

Deck-leveling gauge placed under deck

Exact Adjust tool is used to level mower deck

Deck-leveling gauge is placed at the appropriate location under the left rear, right rear, and front of the mower deck as the cut height is adjusted using the Exact Adjust tool and front draft arm adjusting nuts.


Foot pedal lift system (X570)

Foot pedal lift system (X570)

Foot-lift latch control

Pushing with the foot to raise the mower or implement is less strenuous for many operators:

• Easy-to-use raised-position lock operates similarly to the park brake lock.
• Foot pedal is out of the way and not likely to catch on bushes and tree limbs when mowing.
• Mower deck returns to the same preset height each time it is lowered.

Lift-spring decals and bolt

Lift-assist spring decal

A lift-assist spring is provided on the tractor to minimize lift effort:

• Lift effort can be easily adjusted by just turning a bolt located on the tractor front bumper for optimum performance, depending on the equipment used (mower, front blade, etc.).
• Decals on the outside of the tractor frame indicate appropriate adjustment.
• The mower will not be inadvertently locked in the raised position when mowing through ditches.
• When installing or removing a mower or front equipment raised by the foot-lift system, spring tension may be removed from the connection points.
  •  Pull rearward on the lift pedal and raise the lift latch to hold the pedal in the rearward position.

Convenient hydraulic lift (X580, X584, X590)

Hydraulic lift lever (X580, X584, X590)

Convenient hydraulic lift lever makes raising and lowering the mower or implement easy:

• The hydraulic lift control lever is positioned on the dash near the steering wheel.
• Hydraulic lift provides quick, easy, and precise fingertip control of equipment.
• Implement float is built into the lift linkage.

Parking brake control

Parking brake

Depressing the brake pedal applies force to internal wet-disk brake (which provides excellent durability and long life) for safe stopping.

Parking brake control is conveniently located for easy access; holds brake pedal securely in locked position.

Electric PTO clutch is easy and convenient to use

Electric PTO switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

Heavy-duty PTO clutch

PTO clutch

The PTO clutch is designed to operate through many on/off cycles.

RIO

Reverse implement switch

Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

• Carefully check the area around the machine.
• Disengage the mower before backing up.

NOTE: Operating the mower while backing up is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

1. Stop forward travel. Allow attachment to run.
2. Look down and behind the machine to be sure that there are no bystanders.
3. Push and hold in the reverse implement switch while depressing the reverse pedal slightly.
   NOTE: If the attachment stops while positioning the machine, return mower engagement (PTO) switch to off position. Repeat this procedure from the beginning.
4. Release the reverse implement switch and reposition the machine as the machine begins to move rearward.
5. Resume forward travel. The attachment should continue operating.
6. Repeat procedure to position the machine again.

Heavy-duty welded frame

Front bumper/weight bracket

The frame is made of heavy-duty formed and welded steel, reinforced in critical areas for even greater strength:

• Frame is formed from 12-gauge, 0.105-in. (2.66-mm) thick material.
• Front bumper and hitch plate are formed from 0.25-in. (6.4-mm) steel and complete the frame assembly.

Optional Quik-Tatch weights

Four 42-lb (19-kg) Quik-Tatch weights on rear hitch plate

Four 42-lb (19-kg) Quik-Tatch weights on front bumper

Optional Quik-Tatch weights can be added to increase traction and ballast equipment.

• The rear hitch plate holds up to four 42-lb (19-kg) Quik-Tatch weights.
  • An optional rear weight bracket is required on X584 Tractors.
• On X580, X584, and X590 Tractors, the front bumper holds up to four 42-lb (19-kg) Quik-Tatch weights.

Front axle and wheel spindles are heavy duty

Cast-iron front axle and steering spindles shown on X380 Tractor

The front axle is made of nodular cast iron:

• Strong and shock resistant
• Will not yield under heavy loads or impact

Replaceable bushings are used at the center axle pivot and steering spindles:

• Provide excellent wear resistance
• Grease cavity between bushings maintains lubrication and easy steering between greasings
• Easy-to-service grease fittings at each spindle

The front steering spindles are strong for long life:

• Have the strength to handle heavy implements
  • 0.75-in. (19-mm) steering spindle diameter (X570)
  • 1-in. (25.4-mm) steering spindle diameter (X580, X584, X590)
• Provide long life at bearing surfaces
  • 0.75-in. (19-mm) diameter front wheel bearings (X570)
  • 1-in. (25.4-mm) diameter front wheel bearings (X580, X584, X590)
• Sealed precision ball bearings at front wheels ensure long life and are maintenance free

Rear equipment-mounting system is heavy-duty and easy to use

Rear equipment mounting system

A heavy-duty equipment mounting system is used:

• Includes strong frame mounts with a combination of mounting holes in the tractor hitch plate that accept pins or shoulder bolts to support heavy rear-mounted equipment.
• Easily attach optional equipment to the tractor
• Can bear the load of heavy rear-mounted equipment, such as material collection systems

Attractive styling

Hood air-intake louvers

Smooth, rounded contours present a modern, styled appearance:

• Hood styling incorporates efficient full-length air-intake louvers on each side, rather than on the top.
  • Cooler engine operation
  • Lower operator station sound levels
• Hot air is vented out the front grille, away from the operator.
• The fully enclosed hood is made of molded-in-color material.
  • Reduces sound
  • Will not rust or dent
• Distinctive grille and large, one-piece fender deck complete the styling package.

Two high-quality headlights give excellent visibility

Headlights

Headlights are standard equipment on all models:

• Two 27-W bulbs provide excellent lighting for good visibility during evening operation.
• A headlight position on the ignition switch makes it easy to operate the headlights.
• The headlights are designed to provide an optimum lighting pattern for mowing and snow removal.

Dash controls are color coded for identification

Automotive-like dash display

The operator station is designed for operator comfort and convenience in operating all controls. The controls are easy to use and color coded for quick identification.

Comfortable seats

15-in. (38-cm) open-back seat (X570)

The 15-in. (38-cm) open-back seat (X570) features distinctive styling and is designed for comfort:

• Seat travel of 6.6 in. (17 cm) with 15 positions allows the operator to be seated comfortably and easily operate the controls. Seat can be easily adjusted fore and aft by the operator while sitting on the seat.
• Open-back design allows air circulation to keep the operator's back cool and dry for a more comfortable ride.
• Grasp at the top of the seat is conveniently located for use when tilting the seat up to protect it from the weather.

21-in. (53-cm) cut-and-sewn seat (X580, X584, X590)

The 21-in. (53-cm) high-back cut-and-sewn seat (X580, X584, X590) delivers a comfortable, smooth ride and excellent support for the operator:

• A smoother, more comfortable ride results from the use of more foam than in a form-in-place seat and more side-bolstering to stabilize the operator on uneven terrain.
• Improved visual appeal is provided by the thicker cushion, additional bolstering in the seat and back, and an embroidered John Deere logo that makes this upscale seat look as good as it feels.
• Long-term pliability and less chance of cracking are advantages of the cut-and-sewn process, which does not require heating during the manufacturing process and gives a more uniform vinyl thickness.
• Additional operator support and comfort is available with optional BM23761 armrests.
• Reduced cost of repair, should the seat cover be damaged, is available with a replaceable seat cover available from Parts.

Seat suspensions

Seat suspension with springs in rear position (X570)

The seat suspension (X570) is adjustable, without tools, for the weight of the operator:

• Springs are adjustable fore and aft to any of three positions.
• No tools required
• Allows fine-tuning of the suspension for the operator's weight
• Back position for more support for heavier operators
• Tool tray is designed into the seat base.
• Can be used to store gloves, small tools, etc.
• Provides storage location for Exact Adjust tool and deck-leveling gauge

Four-bar seat suspension (X580, X584, X590)

The four-bar seat suspension (X580, X584, X590) delivers additional suspension travel to isolate the operator from rough terrain:

• 6.6 in. (17 cm) of seat travel allows the operator to be seated comfortably and operate the controls easily.
• Seat can be easily adjusted fore and aft by the operator while sitting on the seat (15 positions).
• Rubber stops may be turned over to adjust seat level
• Seat tilts forward to keep the seating surface out of the weather.
• Tilting the seat forward keeps moisture and the sun off the seat cushion for greater operator comfort.

Optional 21-in. (53-cm) professional two-piece seat, four-bar suspension, and slide

21-in. (53-cm) professional two-piece seat

Convenient tilt-back feature

The optional 21-in. (53-cm) professional two-piece seat, four-bar suspension, and slide shipped on Signature Series X700 Tractors is available as an upgrade seat and suspension for all X500 Multi-Terrain Tractors (model year 2006-). Key selling features for this seat include:

• Thick seat cushion for lasting comfort, even after a full day of use
• Back of seat can be angled to maximize operator comfort
  •  Convenient lever on the side of the seat unlocks back of seat to allow positioning
• Four-bar suspension and slide are included for extra comfort and bolt to the tractor's fender-deck mounting holes
• Standard armrests are included to increase operator support and comfort, thus reducing fatigue and improving productivity, especially when mowing for extended periods of time. Armrests are adjustable to suit the operator.

Tilt steering wheel (X584, X590)

Tilt steering wheel (lowest position)

Tilt steering wheel (highest position)

•  Five steering-wheel positions allow the operator to select the most comfortable setting (X584, X590).

Rubber foot pads

Rubber foot pad

Rubber foot pads make the operator more comfortable:

• Help insulate operator's feet from vibration
• Attractive styling
• Long-lasting wear surface
• Reduce chance of slippage, even with wet surface

Cup holder, toolbox, and fender handle

A cup holder and covered toolbox are conveniently located on the fender next to the operator's seat.

Handles on each fender are useful when getting on and off the tractor.

Standard 12-V outlet

A 12-V outlet is standard equipment and provides a convenient plug-in for electrical equipment.

Illustration of fast connector location

A mid-vehicle 12-V fast connector, located under the tractor’s fuse box, is included as standard equipment to reduce initial installation time for some attachments that operate on 12-V power from the tractor:

• The four-cavity connector includes battery, ground, and key switch terminals and is turned on and off with the ignition switch.

One-piece hood is easy to open

Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

• Important service points are located within easy reach.
• A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.

Easy-to-service engine fuel and oil filters

The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

Quick response (QR) codes link to owner information web pages

Example product identification number (PIN) label with QR code

John Deere riding lawn mowers are supported by owner information web pages that include links to:

• Safety and how-to videos
• Operator’s manuals
• Parts catalog
• Maintenance reminder sheets
• Attachments
• Warranty statements

To speed access to owner information web pages, a QR code is printed onto a PIN label located under the hood on the trim side of the steering pedestal. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN which allows for additional customization of the owner information web page in the future.

Exact Adjust ports and deck-leveling tools make precise deck adjustments easy

Deck-leveling gauge and hex adjusting tool stored under tractor seat (X570)

Exact Adjust access holes

A mower deck must be level side-to-side and properly adjusted front-to-rear to give the best cutting performance. An included deck-leveling gauge and a hex-key tool are provided to make adjustment easy. On the X570 model they are securely stored under the tractor seat.

Exact Adjust leveling ports are provided on each side of the operator platform above the mower-level adjusting bolts. With the hex-shaped tool, they provide convenient access to allow quick and easy adjustment of the mower for the best-cut quality of cut.

The Exact Adjust feature is standard on all Select Series™ X300 and X500 Tractors:

• There is no need to reach under the fender deck while making the mower-level adjustment.
• Included deck-leveling gauge, Exact Adjust ports, and the hex tool work together.
  • Level the mower deck side to side
  • Set the correct amount of rake (front-to-back deck orientation)
  • Calibrate the cutting height to the cut-height adjusting knob setting
• Exact Adjust simplifies leveling the mower deck if equipped with a Power Flow™ blower.
  • To give the best cut, mower level should be adjusted if alternately mowing with and without blower installed. The Exact Adjust feature makes this easy.

Deck-leveling tool placed under deck

Using included ball-hex tool to level mower deck

Consult the operator's manual for the correct adjusting procedures for each tractor model. Basic adjusting steps to properly level the mower deck include:

• Park the tractor on a level surface.
• Inflate tires to the correct pressure.
• Consult the label for the cutting-height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.

Cut height adjusting knob

• Set mower cutting-height knob to the correct deck-leveling position.
• Adjust mower wheels as necessary so they do not contact the ground surface.
• Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim at the designated adjustment points. The location of adjustment points will vary slightly between decks.
  • Left- and right-rear adjustment points are under the deck rim near the rear mower wheels, if equipped.
• Adjust mower deck front-to-back level, if necessary.
  • Loosen rear nuts equally on each side of front lift rod.
  • Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
  • Tighten rear nuts after adjustment is complete.

NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key, part number M162737. The rounded end allows for some misalignment with the bolt as the deck is adjusted.

MowerPlus home screen

MowerPlus maintenance screen

Overview

Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.

Benefits

• Engine hours, fuel level, and battery health (as compatible)
• Mowing history with time, distance, area, and speed
• Current day and five-day weather forecast based on location
• Walk-through setup guides
• Expert mowing tips
• Useful attachments for future purchase
• Periodic maintenance reminders
• Safety instructions

To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.

Additional details

MowerPlus connectors (sold separately)

MowerPlus Deluxe Smart Connector, with a phone

MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.

BUC10929 MowerPlus Deluxe Smart Connector is for use with:

• All S120, S130, S160, S170, and S180 Tractors
• Model year 2021 and newer S240 Tractors (serial number 880,001-)
• Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010,001-)

BUC10537 MowerPlus Smart Connector is for use with:

• Model year 2016 and newer Select Series X300 and X500 Tractors

MowerPlus connectors transmit the fuel level and engine hour information to the app, making it easy to keep track of fuel level and maintenance intervals.

MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries.

Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
