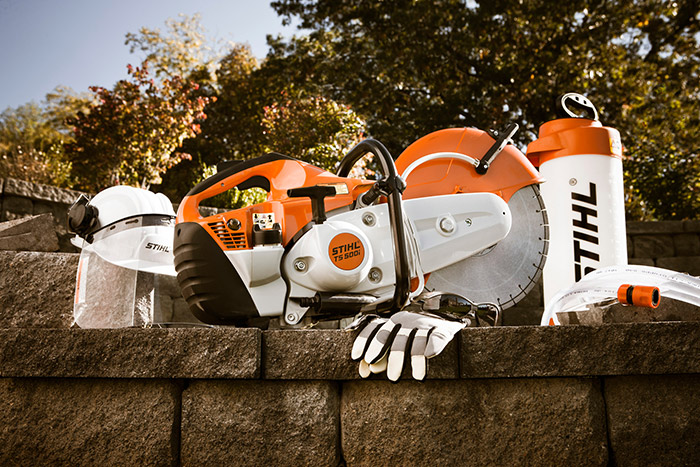

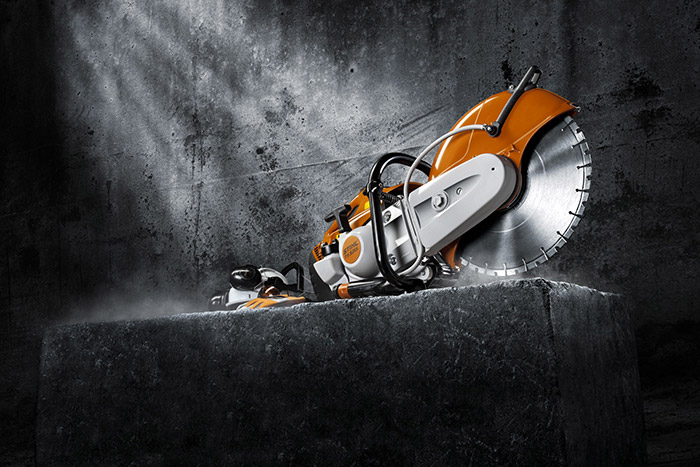

STIHL TS 500i STIHL Cutquik®

A cut-off machine with the world’s first electronically controlled fuel-injection system that increases power, not weight when operating 14” wheels. STIHL offers another industry first with the TS 500i STIHL Cutquik® cut-off machine. Featuring the handheld outdoor power equipment industry’s first electronically controlled fuel-injection system, the TS 500i increases power by 17% and cutting speed by 15%, as compared to the STIHL TS 420. Powerful, lightweight and well-balanced, the STIHL TS 500i is designed for superior handling during the toughest jobs. The low-emission engine provides optimal torque throughout the RPM range and eliminates the need for a choke, simplifying the starting procedure. The standard electronic water control feature allows for easy and efficient water flow adjustment while cutting. The X2 air filtration system is virtually maintenance-free and maintains an incredible 99.96% cleaning efficiency.


This product must be picked up in-store per STIHL's sales policies
STIHL TS 500i STIHL Cutquik® Specifications
DISPLACEMENT72.2 cc (4.41 cu. in.)
ENGINE POWER3.9 kW (5.2 bhp)
FUEL TANK CAPACITY725 cc (24.5 oz.)
ENGINE SPEED9,000 rpm (Elec. Gov.)
MAXIMUM SPINDLE SPEED5,350 rpm
ARBOR SIZE20 mm
MAXIMUM WHEEL SIZE350 mm (14 in.)
MAXIMUM CUTTING DEPTH125 mm (4.9 in.)
POWER SOURCEGas
WEIGHT10.2 kg (22.5 lbs.)
