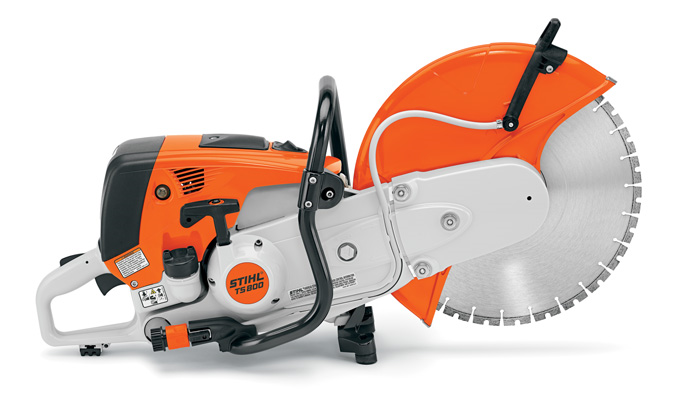

STIHL TS 800 STIHL Cutquik®

The TS 800 Cut-off Machine now featuring a magnesium guard and reduced weight. The TS 800 STIHL Cutquik® cut-off machine now features a magnesium guard, making it a full 0.7 pounds lighter. The TS 800 is the largest size we offer in a handheld design, featuring a 16” cutting wheel with a maximum cutting depth of 5.6”. This machine offers great flexibility – use it as a handheld or quickly snap into a cart for long, straight, controlled cuts. It’s also fuel efficient, with enough power to cut through asphalt, concrete, rebar, iron and steel with ease. The TS 800 features an ergonomic design and five-point advanced vibration control system built right into the handle, maximizing comfort so you can power through your day with less fatigue. It’s the ideal choice for professional contractors, road crews and municipalities. Visit our Dealership and feel the weight difference for yourself.


This product must be picked up in-store per STIHL's sales policies
STIHL TS 800 STIHL Cutquik® Specifications
DISPLACEMENT98.5 cc (6.0 cu. in.)
ENGINE POWER5.0 kW (6.7 bhp)
FUEL TANK CAPACITY1200 cc (40.6 oz.)
ENGINE SPEED9,300 rpm (Elec. Gov.)
MAXIMUM SPINDLE SPEED4,600 rpm
ARBOR SIZE20 mm
MAXIMUM WHEEL SIZE400 mm (16")
MAXIMUM CUTTING DEPTH143 mm (5.6")
POWER SOURCEGas
WEIGHT12.7 kg (28.0 lbs.)
